× Search Result for ( GREAT WALL - 3501100XGW02A) Returns SB - BR83009T

ROTOR DISC | SB - BR83009T
FeedBack

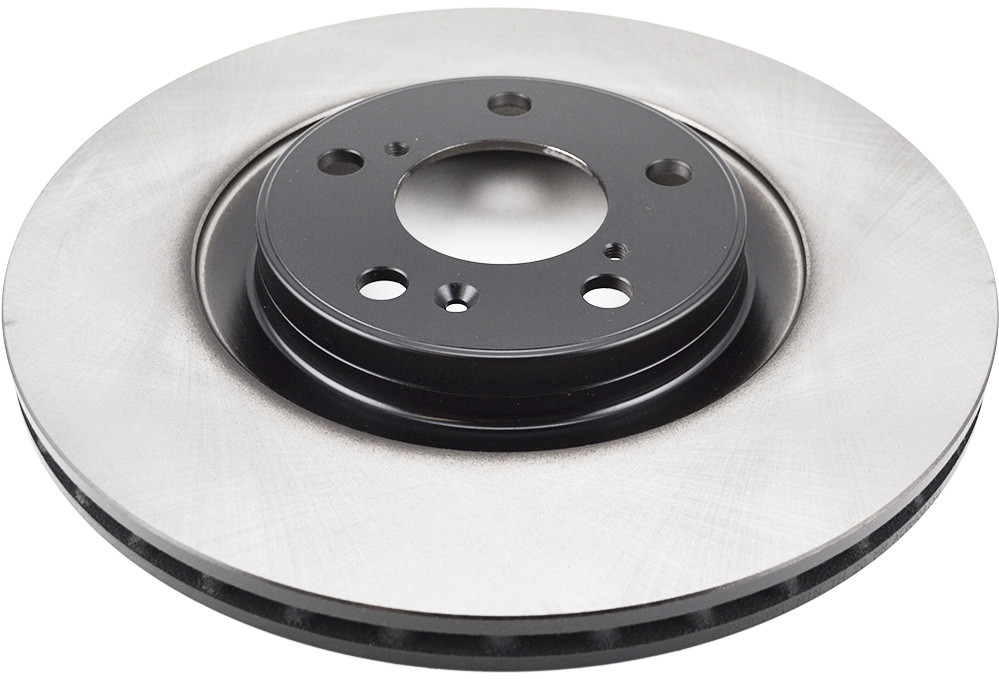

Image Of BR83009T

Alert SB - BR83009T

Specification

TypeVented
Front/RearFront
Structure MaterialG3000
Outter Ø320
Num. of holes5
Hole Ø:15
Disc Thickness (Max)22
Disc Thickness (Min)20
Height38
Centering Diameter68.5
Pitch Circle Ø114.3
Drum Ø:146.5
LocationFront Axle Rotor/Drum
PositionLeft/Right

Crosses

Owner Number
GREAT WALL 3501100XGW02A
Owner Number
HAVAL 3501100XGW02A
Owner Number
HAVAL 3501158XGW02A
Owner Number
NiBK RN2328V

Application

HAVAL   »   H3
01.24~ CC6450 , Eng: 1.5L GW4B15L    (Front Axle Rotor/Drum)   (Left/Right)
01.24~ CC6450 , Eng: 1.5L GW4G15M    (Front Axle Rotor/Drum)   (Left/Right)
HAVAL   »   Jolion
04.21~ CC7150BA , Eng: 1.5L GW4B15D    (Front Axle Rotor/Drum)   (Left/Right)
12.21~ CC7150BG , Eng: 1.5L GW4G15H    (Front Axle Rotor/Drum)   (Left/Right)
ORA   »   03 (ES11)
09.20~ CC7000BJ    (Front Axle Rotor/Drum)   (Left/Right)
WEY   »   Macchiato
11.21~12.23 CW6450AG , Eng: 1.5L E15GH    (Front Axle Rotor/Drum)   (Left/Right)
