× Search Result for ( Raybestos - 582152) Returns SB - BR34143T

ROTOR DISC | SB - BR34143T
FeedBack

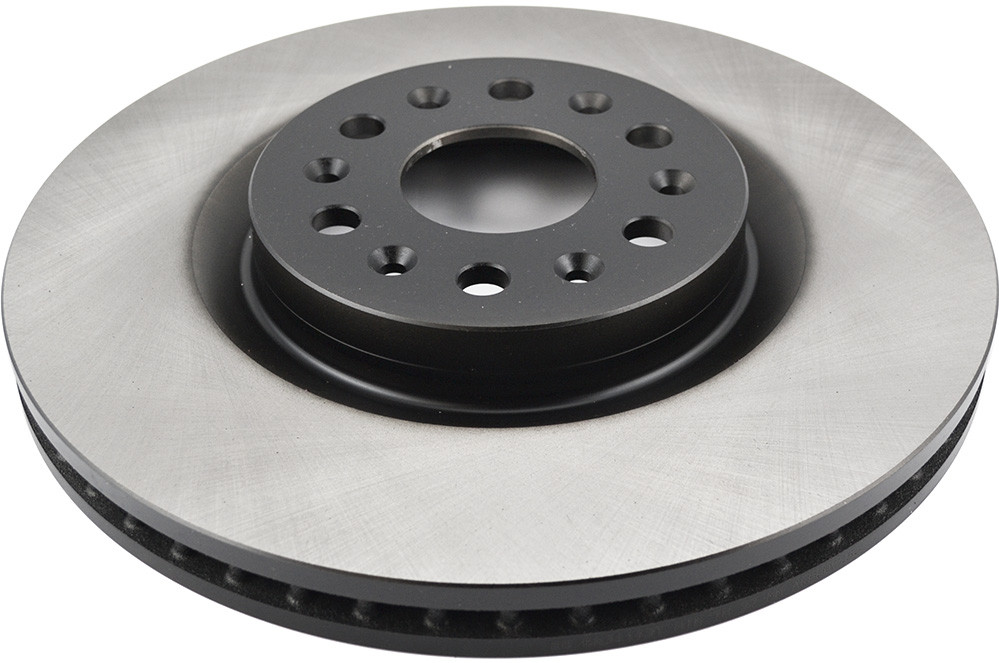

Image Of BR34143T

Alert SB - BR34143T

Specification

TypeVented
Outter Ø345
Num. of holes6
Hole Ø:16
Disc Thickness (Max)30
Disc Thickness (Min)27
Height51
Centering Diameter67.5
Pitch Circle Ø120
Drum Ø:160.2
Front/RearFront
Structure MaterialG3000
LocationFront Axle Rotor/Drum
PositionLeft/Right

Crosses

Owner Number
GM 13516727
GM 13526769
GM 13536149
Owner Number
GM 13546861
Owner Number
GM 13588401
Owner Number
NiBK RN2323V

Application

CADILLAC (GM)   »   XT5
05.16~ , Eng: 3.6L LGX    (Front Axle Rotor/Drum)
12.19~ XT5 , Eng: 2.0L LSY    (Front Axle Rotor/Drum)
CADILLAC (GM)   »   XT6
01.19~ 6N#26 , Eng: 3.6L LGX    (Front Axle Rotor/Drum)
01.19~ 6N#26 , Eng: 2.0L LSY    (Front Axle Rotor/Drum)   (Left/Right)
